Introduction

For this testing environment, have to create two (2) AWS Server that name as KSC Server and KES Server.


Before installing the KSC, make sure all the port are open and close the Windows Firewall for both servers. Install the telnet client and server on the both server.


Installation Kaspersky Security Center on Windows Server 2012 (KSC Server)

After installation and active the license of KSC into the server, click Policies (Managed computers > Policies), double click on Kaspersky Endpoint Security 10. Refer Figure 1.


Figure 1: List of Policies


Then, select Firewall > Setting (Configure rules for Application Privilege Control in the operating system). Refer to Figure 2.

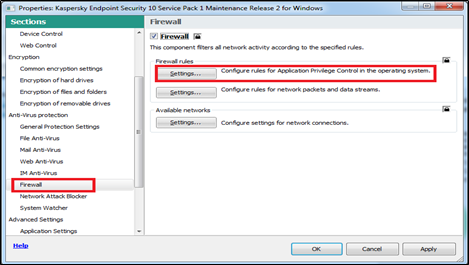

Figure 2: Properties: KES 10


Select Network packet rules >Remote Desktop network activity > Edit. Refer Figure 3.

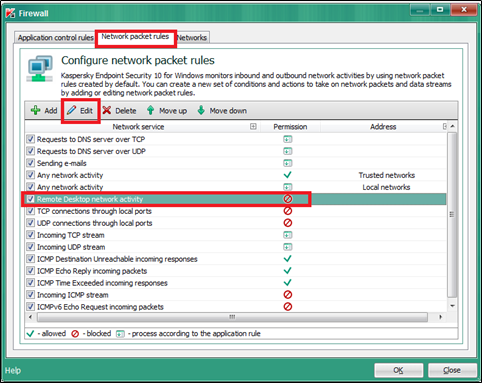

Figure 3: Firewall setting Window


Change the Action status from Block to Allow. (This setting to allow the RDP activity to AWS server). Then click OK. Refer Figure 4.

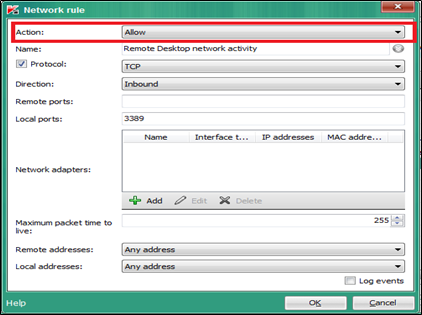

Figure 4: Network rule


Then install the KES and make sure all the status on Managed computers > Computer are green. Refer to the image below.

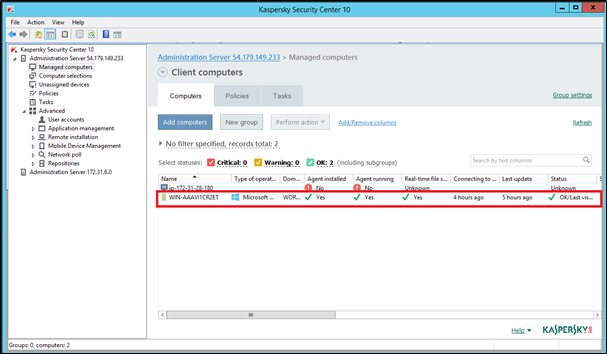

Figure 5: KSC 10 Console


For the Windows Server, there is only three (3) component of the KES 10 for Windows running to protect the server and no Endpoint Control running for the server. KES 10 for Windows run full protection only for the Endpoint Workstation.

There is three (3) component that runs on the server.

  • File Anti-Virus Protection
  • Firewall Protection (if the server running by RDP, must allow the RDP session on Firewall setting under Policies)
  • Network Attack Blocker protection

The image below shows the different of the KES 10 for Windows on Server and Endpoint Workstation.

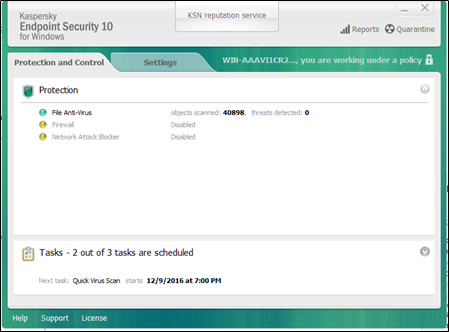

Figure 6: KES 10 for Windows on Server

KES 10 for Windows on Server

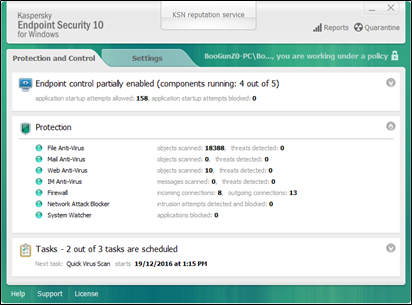

Figure 7: KES 10 for Windows on Endpoint Workstation (Endpoint Control)

KES 10 for Windows on Endpoint Workstation (Endpoint Control)


Figure 8: KES 10 for Windows on Endpoint Workstation (Protection)

KES 10 for Windows on Endpoint Workstation (Protection)
