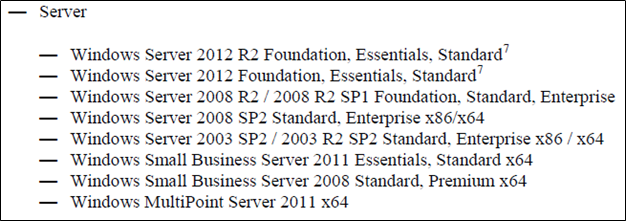

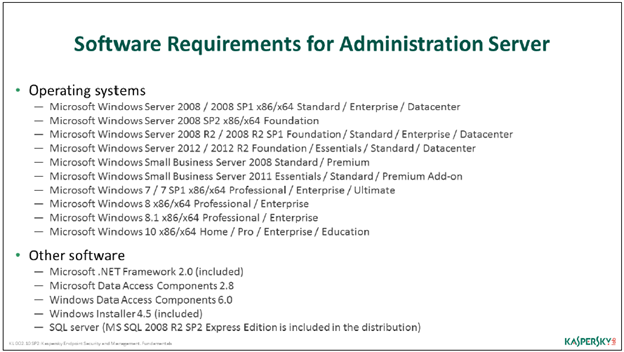

System Requirements

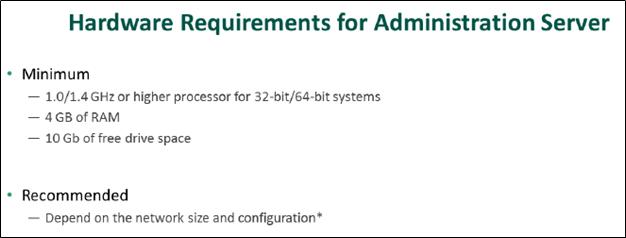

KASPERSKY SECURITY CENTER (ADMIN SERVER)




NOTE: For few hundreds of endpoints or PoC, a workstation spec can be used as KSC. The analysis and scanning are done at the endpoint, KSC just manages them.

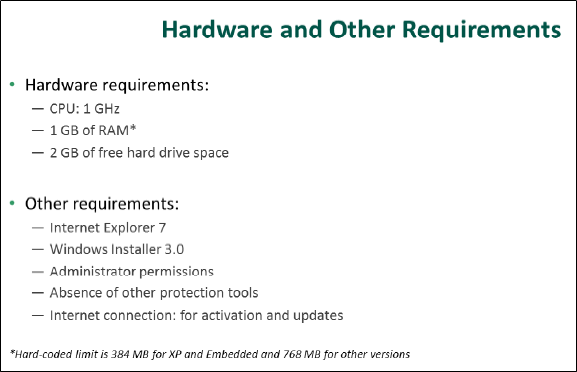

KASPERSKY ENDPOINT SECURITY 10 FOR WINDOWS

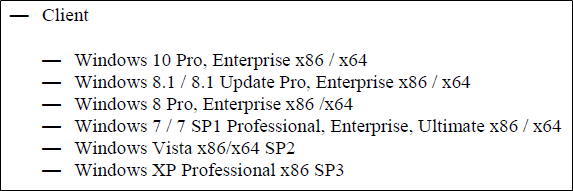

System Requirements


KASPERSKY ENDPOINT SECURITY 10 FOR WINDOWS


1. Furbish us with below details and Ask4key team will register to get the 30 days activation code.


First Name


Last Name

Company Name

Email Address

Phone Number

Designation


2. The activation code will send to you by email. Please check your email.

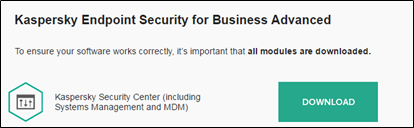

3. Once you have the activation code, please download Kaspersky Security Center that contains in the email as shown below.





KASPERSKY SECURITY CENTER INSTALLATION


1. After finish download, Double click the installer to install to the Server PC.

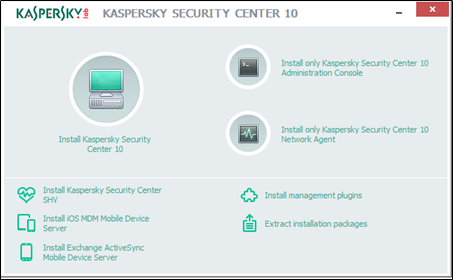

2. Click “Install Kaspersky Security Center 10”



3. On the welcome page of the wizard, click Next.

4. Accept the license agreement and click Next.



5. Select the Custom installation type and click Next



6. Choose the Fewer than 100 computers in the network option and click Next.



7. On the Account page, click Next.

8. On the Account for service page, click Next.

9. Keep the Microsoft SQL Server option selected and click Next.

10. On Connection settings page, click Next.

11. On SQL Authentication Mode page, click Next.

12. On Shared folder page, click Next.

13. On Connection settings page for port, click Next.

14. Select the IP address of the Administration Server and click Next.



15. On the following page, click Next.



16. On the following page, click Install.



17. On the last page of the wizard, un-tick Start Administration Console and click Finish.


CONFIGURE ADMIN SERVER AND ACTIVATE LICENSE CODE


1. Open the Kaspersky Security Center 10 console.

2. Select the Administration Server node.

3. On the Welcome page of the wizard, click Next.

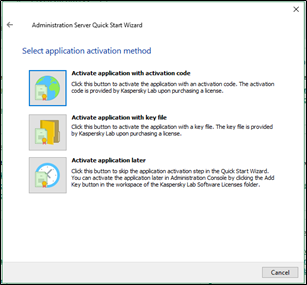

4. Click Activate application with the activation code.



5. On the following page, enter the activation code that you get from Kaspersky by Email. Please enter the code by type (NOT COPY & PASTE).



6. On following page, choose I agree to participate in Kaspersky Security Network and click Next.

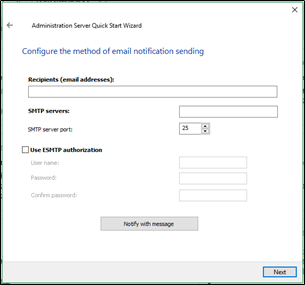

7. On the following page, if your network has SMTP servers, fill the Recipients and SMTP server IP and click Next. (If no SMTP server, click Next)



8. On the Update management settings, click Next.

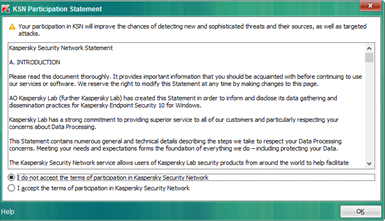

9. In the KSN Participation Statement window, select I accept the terms of participation in Kaspersky Security Network and click OK.

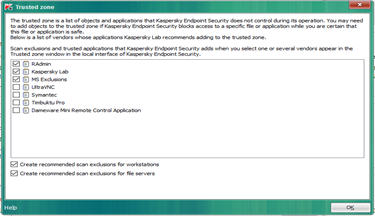

10. Consult the scanning exclusions and trusted applications that Kaspersky Endpoint Security can add and click OK.



11. Click Next.



12. Without waiting for an update to finish, click Next.

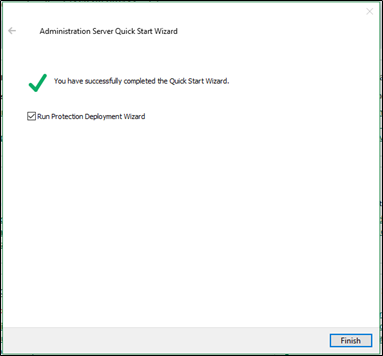

13. On the following page, clear the Run Protection Deployment Wizard check box and click Finish.



14. Select the Management computers node

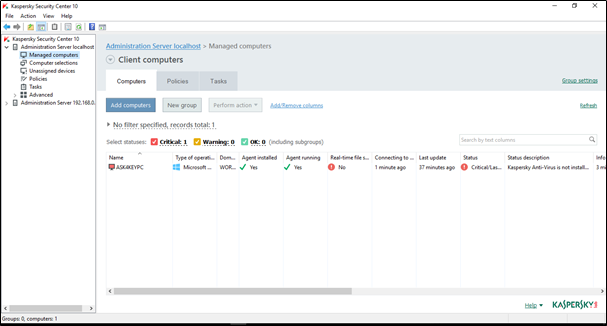

15. Switch to the Computers tab. Make sure that the PC Server computer name is there.
